COMET-44

Modular Robotic Cell

Why Comet-44?

The Comet-44 is probably the most versatile Robotic Cell of our product line. Its configuration gives a wider working space, but still stays compact. Offering the same compatibility as its little sister, the Comet-44 can also be accessorized with plenty of our bundles, like the Robotic Deburring Cell. Above all, this Modular Robotic Cell offers speed, accuracy in a safe environment, and is modular over time. The cell is equipped with wheels, pre-integrated ratchet handles, and leveling pads for mobility, and stability when needed.

Given these points, the Comet-44 is perfect to sustain tasks like machine-tending, dispensing, assembly, and material removal.

Comet-44 FANUC LR Mate 200iD

Get the best fit for your automation project with one of our robotic cells.

This robotic cell finder will help you find the perfect cell to improve your production line. If you have trouble identifying your needs, we’ll be glad to help.

Filter products Showing all 27 results
Reach (mm)
Payload (kg)
Product Speed
Category

APPLICATIONS

Machine Tending icon

Machine Tending

This Cell is a sustainable standalone solution to automate a production line. It can handle a multitude of tending tasks efficiently, but can also work independently.

dispensing icon

Dispensing

The Comet-44 can handle dispensing tasks with several components like sealants, adhesives, paints, or any other fluids with precision and accuracy.

icone_Assembly

Assembly

This Robotic Cell gives more accuracy and precision to assembly tasks. With its wider workspace, it also brings more speed and latitude into a production line.

Material Removal icon

Material Removal

The Comet-44 can deal with plenty of material removal tasks with precision, speed, and consistency for a large variety of industries.

Comet-44 FANUC LR Mate 200iD

Like all of our Robotic Cells, the Comet-44 can also achieve many other tasks. Contact us to learn more about the possibilities that offers you the Comet-44.

BENEFITS

Compact icon
COMPACT
Compact icon
SAFE
Compact icon
CUSTOMIZABLE
icone versatile
VERSATILE
fast - icon
FAST

Once again, this Modular Robotic Cell comes with all the usual DIY Robotics benefits, such as free support and a lifetime warranty.

ROBOTIC COMPATIBILITY OPTIONS

Starting at
$59,000 USD

Comet-44 LR-MATE 200iD/4S
timer - icon

4000 mm/s

largeur icon

500 mm

kg icon

4 kg

Starting at
$63,500 USD

Comet-44 LR-MATE 200iD
timer - icon

4000 mm/s

largeur icon

717 mm

kg icon

7 kg

Starting at
$66,500 USD

Comet-44 LR-MATE 200iD/7L
timer - icon

4000 mm/s

largeur icon

911 mm

kg icon

7 kg

Starting at
$57,500 USD

Comet-44 SCARA SR-3iA
timer - icon

4000 mm/s

largeur icon

400 mm

kg icon

3 kg

Starting at
$61,500 USD

Comet-44 SCARA SR-6iA
timer - icon

5000 mm/s

largeur icon

650 mm

kg icon

6 kg

Starting at
$69,500 USD

Comet-44 SCARA SR-12iA
timer - icon

3000 mm/s

largeur icon

900 mm

kg icon

12 kg

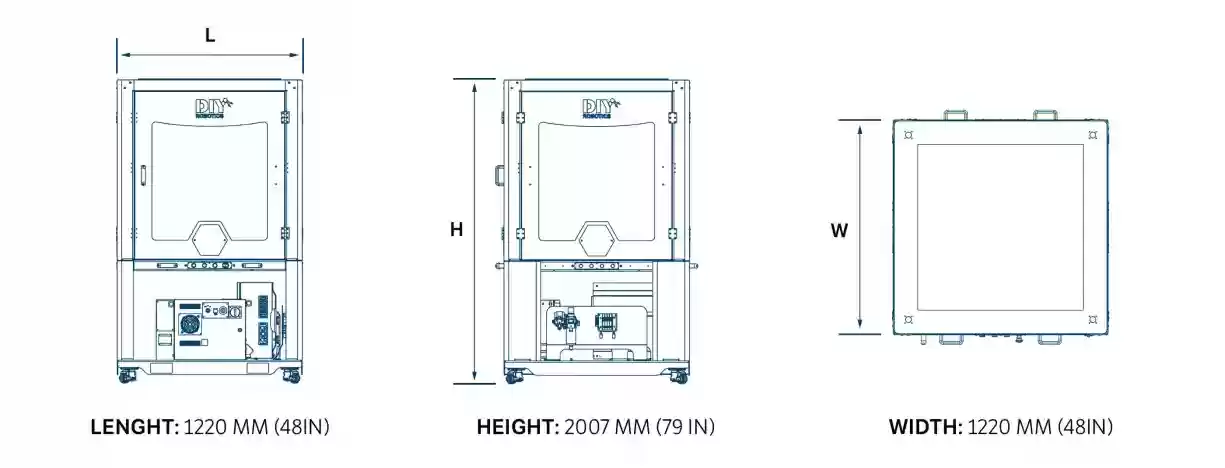

  • Weight : 590 kg (1330 lbs)
  • Wheels with integrated leveling pads
  • Integrated electrical cabinet (32 in/32 out available user I/O)
  • Integrated pneumatic panel (4 valves 5/3 open-center 6 mm ports)
  • Meets the CSA requirements
  • Easily adaptable for custom needs
  • Optional adjustable height for improved ergonomics
    (Electrically or mechanically):

    • Min 30 in (762 mm)
    • Max 38 in (965 mm)
  • 200-240 VAC single phase:
    • Optional 120V 15A
  • EtherNet/IP communication
  • Karel
  • DCS
  • Basic interference check
  • Collision Guard
  • Constant Path

Included software :

  • Background logic programs for alarms, lights, locking sequence, and timers for the general operation of the robotic cell
  • 10 basic programs associated with the product selection on the HMI page
  • The cell is programmed to be operated with 3 buttons (Stop, Reset, Start). It starts the main program that calls the selected product
  • One homing program selectable by a macro
  • Two HMI pages; one for the general operation of the cell and one for product selection

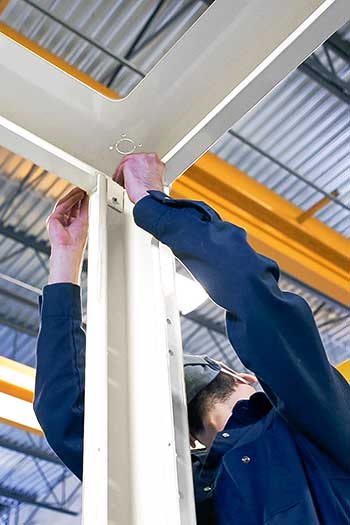

Robotic Cell Installation

Installation

The Comet Cell can be integrated into your production line with only 12 simple steps. Before the Comet-44 arrives at your factory, make sure its space has been prepared.  The floor does not need to be perfectly leveled, as you will be able to adjust the cell by handling the pre-integrated ratchet handles on the wheels. The Comet cell needs an electric and a pneumatic connection. Make sure you have both of them set up. You can find more specifications about the Comet-44 installation procedure on the documentation shared on our website. Remember that DIY Robotics provides free support to help you at any moment if needed.

Turnkey solution

If you’re not comfortable installing and integrating the collaborative cell yourself, know that we partner with plenty of official integrators that can help turn our plug-and-play robotic cells into a turnkey solution that fits your needs. We can recommend a partner for your project, or you can pick one yourself according to your preference, on our turnkey solution page.

We can assist you in many ways

As our mission is to make industrial robotics accessible to all, we have developed several tools to guide you towards your own Industrial Revolution. Visit our forum for free programming, engineering, designing, and troubleshooting support. You can also use our 3D builder to create a cell that fits your specific needs, and use our payload calculator to make sure the robot you selected can manipulate the EOAT you designed.
