SATELLITE-55

Modular Robotic Cell

Why Satellite-55?

When it comes to industrial robots, the first image that usually comes to mind is the massif Robot working in an even bigger factory. This representation is not false, but when it comes to smaller businesses with similar needs, a solution like the Satellite-55 seems obvious. With a payload capacity of up to 35 kg, the Satellite-55 is the smallest of our biggest robotic cells. Its modular panels give it a more compact footprint than classic fencings would.

Its leveling pad wheels make it mobile and assure stability when needed. Therefore, the Satellite-55 is perfect for applications like assembly, dispensing, material removal, or load and transfer.

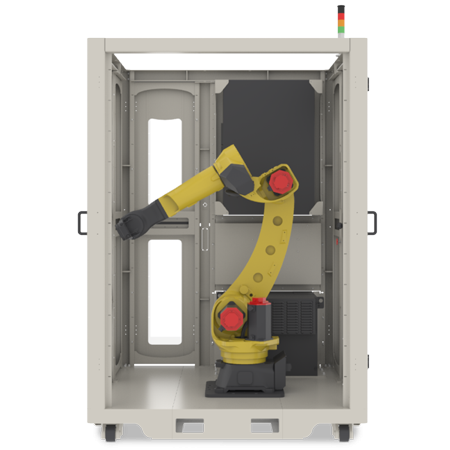

Satellite-55 FANUC M-20iD/25

Get the best fit for your automation project with one of our robotic cells.

This robotic cell finder will help you find the perfect cell to improve your production line. If you have trouble identifying your needs, we’ll be glad to help.

Filter products Showing all 27 results
Reach (mm)
Payload (kg)
Product Speed
Category

APPLICATIONS

icone_Assembly

Assembly

Its payload allows the Satellite-55 to handle heavier parts in an assembly line.

dispensing icon

Dispensing

What makes the Satellite-55 the perfect fit for any dispensing task is its long reach. Depending on the robot selection, it can go up to 1853 mm.

Material Removal icon

Material Removal

The heavier payload capacities of the Satellite allow bigger and stronger toolings.

Icone_PickandPlace

Load and Transfer

Its compatible robot options being stronger in payload, the Satellite-55 can handle heavier weights performing loading or transferring tasks.

Satellite-55 FANUC M-10iD/12

The Satellite-55 can also be a good option for many other tasks.
Contact us to learn more about the possibilities.

BENEFITS

heavier payload icon
HEAVIER PAYLOAD
fast - icon
FAST
Icon Robuste
ROBUST
safe - icon
SAFE
WiderReach icon
WIDER REACH

The Satellite-55 comes with all the usual DIY Robotics benefits.
You get free and lifetime support, and much more.

ROBOTIC COMPATIBILITY OPTIONS

Starting at
$89,500 USD

Satellite-55 FANUC M-10iD/12
timer - icon

2000 mm/s

width icon

1441 mm

kg - icon

12 kg

Satellite-55 with
FANUC M-20iD/25

Starting at
$99,000 USD

Satellite-55 FANUC M-20iD/25
timer - icon

2000 mm/s

width icon

1831 mm

kg - icon

25 kg

  • Weight: 1111 kg (2450 lbs)
  • Wheels with integrated leveling pads
  • Integrated electrical cabinet (32 in/32 out available user I/O’s)
  • Integrated pneumatic panel (4 valves 5/3 open-center 6 mm ports)
  • Meets the CSA requirements
  • Easily adaptable for custom needs
  • Pre-secured robotic environment
  • Completely modular
  • 480 VAC three phases
  • EtherNet/IP communication
  • Karel
  • DCS
  • Basic interference check
  • Collision Guard
  • Constant Path

Included software :

  • Background logic programs for alarms, lights, locking sequence, and timers for the general operation of the robotic cell
  • Two HMI pages; one for the general operation of the cell and one for product selection
  • 10 programs associated with the product selection HMI page
  • The cell is programmed to be operated with 3 buttons (stop, reset, start). It starts the main program that calls the selected product
  • One homing program selectable by a macro
Satellite-55 Installation

Installation

The Satellite Cell can be integrated into your production line with only 12 simple steps. Before the Satellite-55 arrives at your factory, make sure its space has been prepared. The floor does not need to be perfectly leveled, as you will be able to adjust the cell by handling the pre-integrated ratchet handles on the wheels. The Satellite cell needs an electric and a pneumatic connection. Make sure you have both set up. You can find more specifications about the Satellite-55 installation procedure on the documentation shared on our website. Remember that DIY Robotics provides free support to help you at any moment if needed.

Turnkey solution

If you’re not comfortable installing and integrating the robotic cell yourself, know that we partner with plenty of official integrators that can help turn our plug-and-play robotic cells into a turnkey solution that fits your needs. We can recommend a partner for your project, or you can pick one yourself according to your preference, on our turnkey solution page.

We can assist you in many ways

As our mission is to make industrial robotics accessible to all, we have developed several tools to guide you towards your own Industrial Revolution. Visit our forum for free programming, engineering, designing, and troubleshooting support. You can also use our 3D builder to create a cell that fits your specific needs, and use our payload calculator to make sure the robot you selected can manipulate the EOAT you designed.
