SATELLITE-66

Modular Robotic Cell

Why Satellite-66?

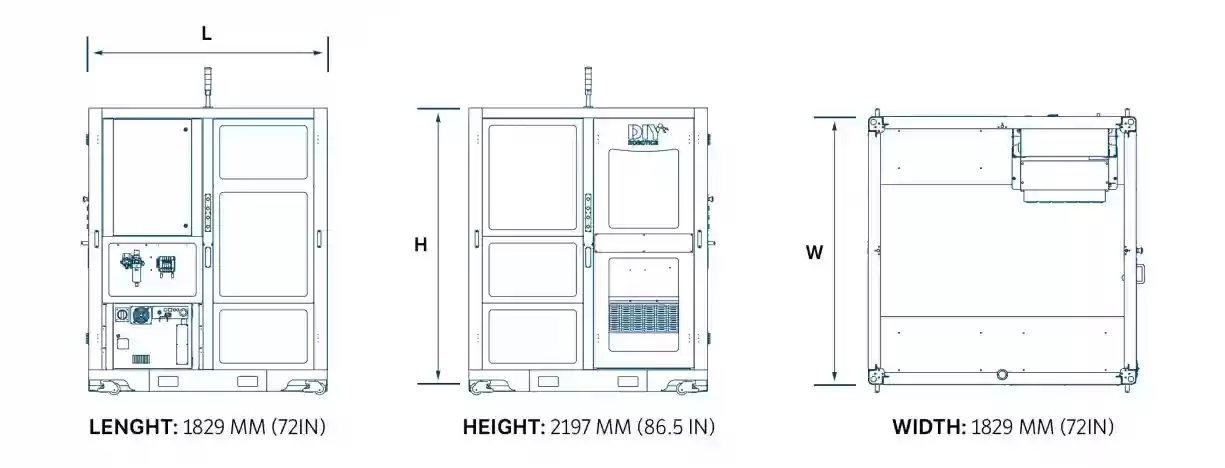

The largest robotic cell of our product line is the Satellite-66. It was created to support bigger robots with payloads up to 70 kg. The difference between the Satellite-66 and the Satellite-55 is the working space inside the cell. Its square configuration of 6 feet by 6 feet offers the space needed to add some add-ons or tools to it.

Speaking of add-ons, the modularity of the Satellite-66 makes it perfect for many applications over time. From assembly to palletizing, the Satellite-66 can also be moved from one working station to another with its leveling pad wheels.

Satellite-66 FANUC M-10iD/12

Get the best fit for your automation project with one of our robotic cells.

This robotic cell finder will help you find the perfect cell to improve your production line. If you have trouble identifying your needs, we’ll be glad to help.

Filter products Showing all 42 results
Reach (mm)
Payload (kg)
Product Speed
Category
Manufacturer
FIND YOUR ROBOT

APPLICATIONS

icone_Assembly

Assembly

More space and a larger payload capacity make the Satellite-66 capable of handling larger parts.

Palletizing icon

Palletizing

The payload of its robot capacity allows the Satellite-66 to handle heavier parts, which makes it perfect for palletizing.

Icone_PickandPlace

Load and Transfer

The wider working space of the cell gives it more room to handle bigger parts while loading or transferring them.

Satellite-66 FANUC M-20iB/25

The Satellite-66 is far from limited to these tasks.
Contact us to learn more about its possibilities.

Contact us

BENEFITS

heavier payload icon
HEAVIER PAYLOAD
fast - icon
FAST
Icon Robuste
ROBUST
safe - icon
SAFE
WiderReach icon
WIDER REACH

The Satellite-66 also comes with all the usual DIY Robotics benefits
such as free and lifetime support, and more.

Get a Free Quote

ROBOTIC COMPATIBILITY OPTIONS

Starting at
$103,000 USD

Satellite-55 IRB 1600
timer - icon

coming soon

largeur icon

1450 mm

kg icon

10 kg

Starting at
$113,450 USD

Satellite-55 IRB 2600
timer - icon

coming soon

largeur icon

1650 mm

kg icon

12 kg

Starting at
$113,150 USD

Satellite-55 IRB 2600
timer - icon

coming soon

largeur icon

1850 mm

kg icon

12 kg

Starting at
$99,000 USD

Satellite-66 FANUC Robot M-10iD/12
timer - icon

2000 mm/s

largeur icon

1441 mm

kg icon

12 kg

Starting at
$109,450 USD

Satellite-66 FANUC Robot M-20iD/25
timer - icon

2000 mm/s

largeur icon

1831 mm

kg icon

25 kg

Starting at
$117,700 USD

Satellite-66 FANUC Robot M-20iB/25
timer - icon

4000 mm/s

largeur icon

1853 mm

kg icon

25 kg

Starting at
$117,700 USD

Satellite-66 FANUC Robot M-20iB/35S
timer - icon

4000 mm/s

largeur icon

1445 mm

kg icon

35 kg

Satellite-66 with other robot options

Satellite-66 Cell

Contact us for more information

Contact us
  • Wheels with integrated leveling pads
  • Integrated electrical cabinet (32 in/32 out available user I/O’s)
  • Integrated pneumatic panel (4 valves 5/3 open-center 6 mm ports)
  • Meets the UL/cUL requirements
  • Easily adaptable for custom needs
  • Pre-secured robotic environment
  • Completely modular
  • 480 VAC three phases
  • EtherNet/IP communication
  • Karel
  • DCS
  • Basic interference check
  • Collision Guard
  • Constant Path

Included software :

  • Background logic programs for alarms, lights, locking sequence, and timers for the general operation of the robotic cell
  • Two HMI pages; one for the general operation of the cell and one for product selection
  • 10 programs associated with the product selection HMI page
  • The cell is programmed to be operated with 3 buttons (stop, reset, start). It starts the main program that calls the selected product
  • One homing program selectable by a macro

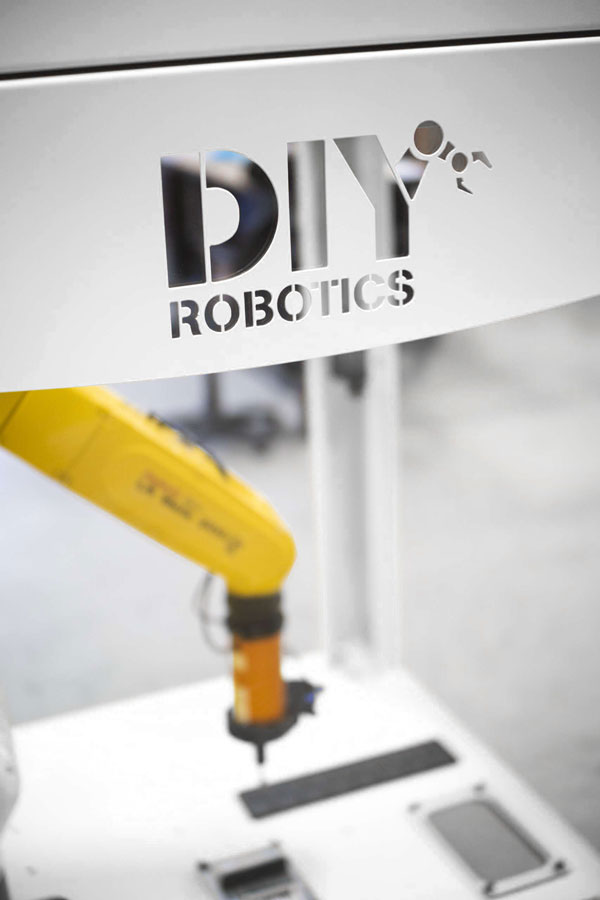

Satellite-66 Installation

Installation

The Satellite Cell can be integrated into your production line with only 12 simple steps. Before the Satellite-66 arrives at your factory, make sure its space has been prepared. The floor does not need to be perfectly leveled, as you will be able to adjust the cell by handling the pre-integrated ratchet handles on the wheels. The Satellite cell needs an electric and a pneumatic connection. Make sure you have both set up. You can find more specifications about the Satellite-66 installation procedure on the documentation shared on our website. Remember that DIY Robotics provides free support to help you at any moment if needed.

Documentation

Turnkey solution

If you’re not comfortable installing and integrating the collaborative cell yourself, know that we partner with plenty of official integrators that can help turn our plug-and-play robotic cells into a turnkey solution that fits your needs. We can recommend a partner for your project, or you can pick one yourself according to your preference, on our turnkey solution page.

Turnkey

We can assist you in many ways

As our mission is to make industrial robotics accessible to all, we have developed several tools to guide you towards your own Industrial Revolution. Visit our forum for free programming, engineering, designing, and troubleshooting support. You can also use our payload calculator to make sure the robot you selected can manipulate the EOAT you designed, or you can talk to one of our experts if you have any additional questions.
